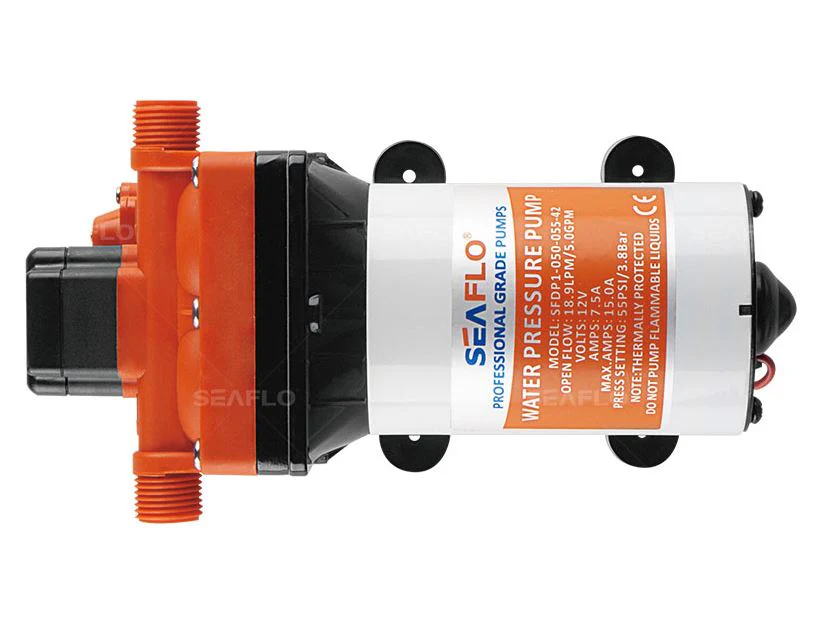

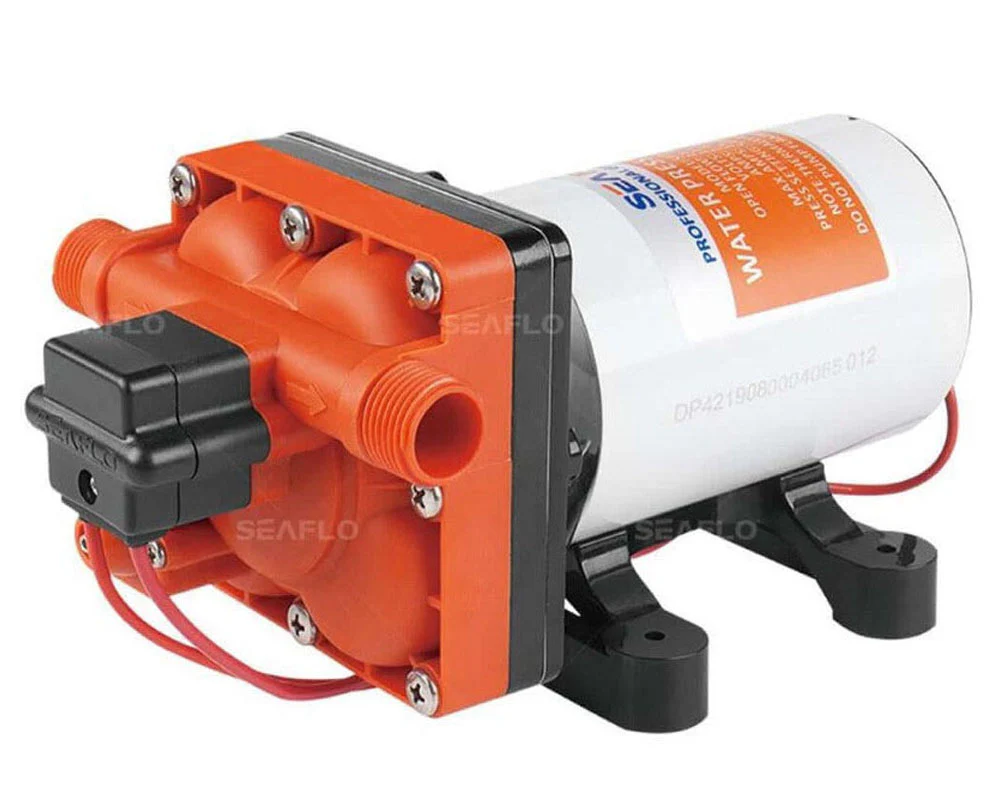

SEAFLO Diaphragm Pump 12V/24V

SEAFLO 42 Series Diaphragm Pump 12V/24V 3.0 - 11.3LPM 17 - 55PSI

Description:

The SEAFLO 42 Series Diaphragm Pump is designed for reliable Pump performance in Pump Diaphragm Pump various applications. It Diaphragm Pump features run dry capability, quick-connect plug-in ports for easy installation (hose kit included), Diaphragm Pump self-priming functionality, Pump Diaphragm Pump and ignition and Diaphragm Pump thermal Pump protection.

Specifications:

• Motor Voltage: 12 V DC
• Type: 4 chamber diaphragm pump, self-priming, capable of Pump being Pump run Pump dry Diaphragm Pump
• Mode: Demand or bypass
• Certifications: Diaphragm Pump CE Approval (optional) Pump
• Liquid Temperature: Max 140°F (60°C)
• Priming Capabilities: Up to 6 feet (1.8 m)
• Max Pressure: 55 psi (3.8 bar) Diaphragm Pump
• Max Flow Rate: 11.3 lpm (3.0 gpm)
• Diaphragm Pump Thermal Overload Protection: Starts working at 90°C (±10%)
• Inlet/Outlet Ports: 10/13mm pyramid hose barb, 13mm angle hose barb, 1/2" FNPT thread filter options
• Duty Cycle: Intermittent (continuous working time varies with pressure)
• Motor Options: 2-pin connector, on/off switch Diaphragm Pump

Applications:

• Yacht / RV / Caravan Pump pressurized water Pump systems Pump
• Sprayer fixtures (Vehicle-mounted sprayers, electric sprayers)
• Clean machines, Humidifiers, Water purification, Medical Pump apparatus
• Food and beverage filling, liquid transfer
• Any other pressurization systems

Package Contents:

• 1 x Pump SEAFLO 42 Series Diaphragm Pump 12V/24V Pump
